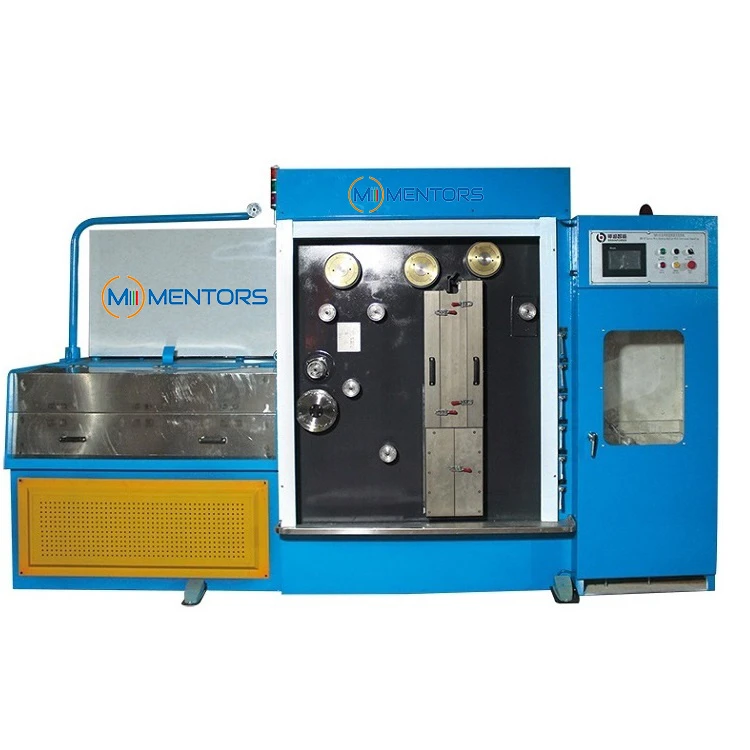

It is used for drawing raw materials:H60-H65(CuZn40-CuZn35).Electric Wire Drawing Machine body is welded structure by the steel plate with annealing progress.There are six or ten layers for drawing capstan with horizontal structure.
Main Specifications
|
Machine type |
BRN-DT23 |
|
Inverter control |
Dual inverter control |
|
Drawing dies No./max. |
23 |
|
Inlet diameter |
0.5- 1.2mm |
|
Out diameter |
0.15- 0.32mm |
|
Drawing line speed |
1400m/min |
|
Slip ratio of m/c |
15% |
|
Lubrication consumption |
40 liters / min |
|
Max. Dia Of drawing capstan |
194mm |
Machine Characteristic
1. The special design of the final die holder ensures that the straightness of the finished wire meets the EDM standard
2. Drawing capstan use anti-wearing raw material, long working life;
3. Drawing parts using sprayed lubrication type;
4. EDM Brass Wire Drawing Machine use automatic traversing system, which can reduce the dependence on manpower.
Application Field
Wire processing and manufacturing industry.
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
