Brass Wire Annealer is special for annealing 40 copper wires 0.08-0.32 mm at the same time. The annealing body length of the brass wire annealer is 4.5m. The water tank is re-cycle design and with water tank and pump. The two ends of the hauling drum with revolving joints and can connect the re-cycle water for cooling.
Main Specifications
|
Machine type |
40H/4.5M |
|
Length of annealing tank |
4.5 m |
|
Wire dia |
0.08-0.32 mm |
|
Pay-off stand |
By brush wire |
|
Max. speed |
300m/min |
|
Tin-coating type |
Dual parts by heater(optional) |
|
Pay-off bobbin size |
Φ300 or customized |
|
Spool bobbin size |
PT5-PT25 or customized |
|
Take-up type |
Single spooler drive by torque motor |
|
Annealing type |
Continuous annealing by heater |
|
Total power consumption |
75KW |
|
Machine dimension |
25000L×2200W×1900Hmm |
Machine Characteristic
1. Add one room inside the annealing, which can make the temperature impartial distribution.
2. It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
3. Support steel for annealing tube won't touch up and down site of the annealing body,the heat won't be dissipated quickly.

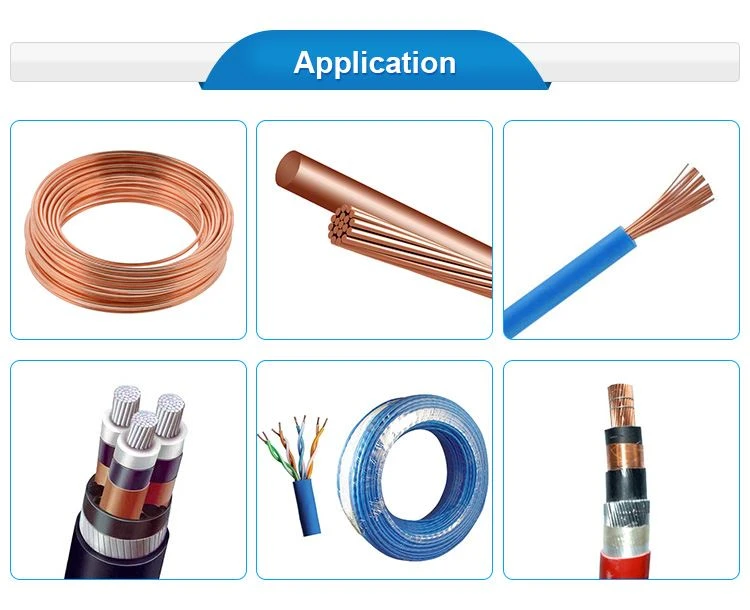

Application Field
Wire processing and manufacturing industry, wire and cable industry
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
