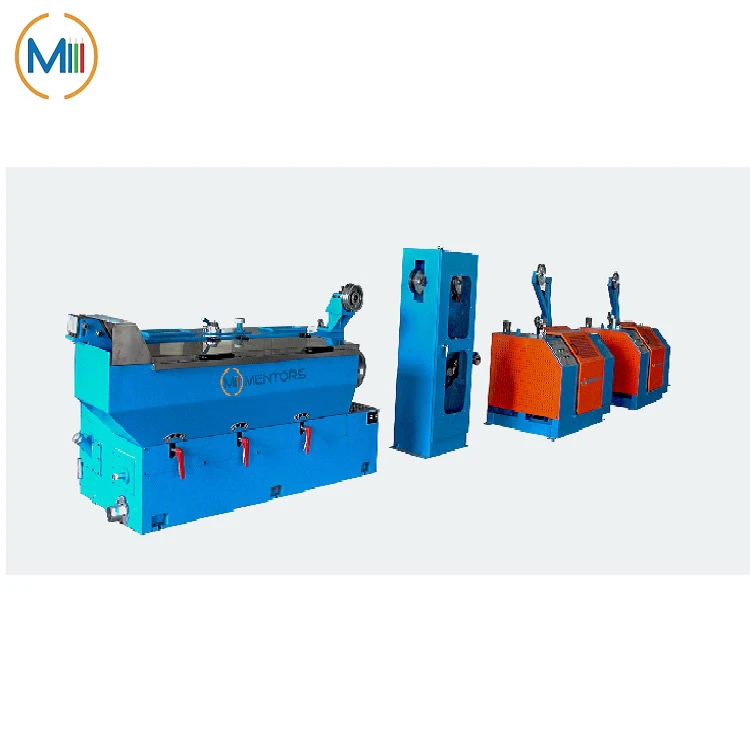

Intermediate Copper Wire Drawing Machine is used for drawing and annealing pure copper wire, followed by online annealing. Gear material is 20CrMnTi, processed by carburizing and quenching.Processing equipment: is processed by gear grinding machine imported from Germany.
Main Specifications
|
Machine Type |
13DH.2 |
17DH.2 |
|
|
Drawing Wire No. |
2 Wires |
||
|
Inlet Dia. (mm) |
2.5-3.5 |
||
|
Outlet Dia.(mm) |
2×0.68-1.5 |
2×0.4-1.0 |
|
|
1 × 2.8 Max. |
1×2.0 Max. |
||
|
Max. Die No. |
13 |
17 |
|
|
Max. Line Speed(m/min) |
2000 |
2000 |
|
|
Main Motor Power (kw) |
75 |
||
|
Take-up Motor(kw) |
15 |
||
|
Capstan Dia.(Max.)(mm) |
280 |
250 |
|
|
Fix Speed Capstan Dia.(mm) |
280 |
250 |
|
|
Transmission Type |
By Gear |
||
Machine Characteristic
1. High precision grinding bevel gear.
2. Add final rotating die system.
3. Intermediate Copper Wire Drawing Machine with automatic traversing system, traversing width adopting with electric adjusting.
Application Field
Wire processing and manufacturing industry, wire and cable industry.
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
