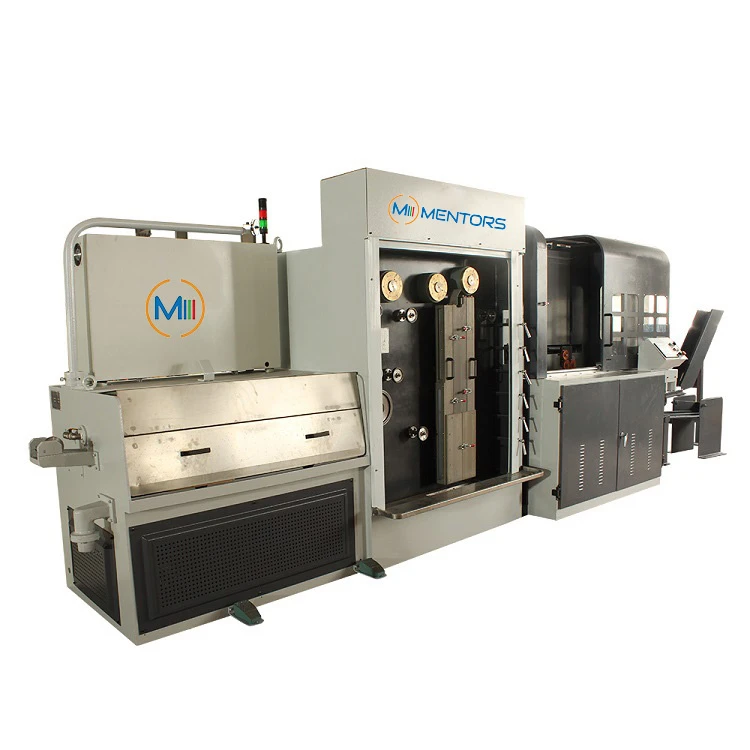

Two copper wires are drawn and annealed at the same time to ensure the uniformity of wire quality, which can effectively improve production efficiency and reduce production costs. The Automatic Wire Drawing Machine is composed of pay-off, 2 heads wire drawing machine, 2 heads continuous annealing device and single spool take-up device.
Main Specifications
|
Machine type |
BRN-DT22/1.2 |
|
Inverter control |
Dual inverter control |
|
Drawing dies No./max. |
22×2 |
|
Inlet diameter |
0.5- 1.2mm |
|
Out diameter |
0.16- 0.40mm |
|
Drawing line speed |
1800m/min |
|
Main motor |
15 kw |
|
Spooler motor |
2.2×2kw |
|
Annealing voltage |
DC 0-60V |
|
Annealing current |
DC 300A |
Main description of Automatic Wire Drawing Machine:
1. The main body of the Automatic Wire Drawing Machine is made of Q235 steel structure being stress-relieved by annealing after welding.
2. The transmission shaft is made of chrome steel and heat-treated to HRC25-27. It can eliminate strong stress and have good mechanical properties which ensure the core axis is coaxial and straight.
3. The electrical control system of the Automatic Wire Drawing Machine is equipped with PLC, frequency inverter, and HMI which can show the status of working conditions or trouble situations. The contactors and relays are of the Schneider brand.
Machine Characteristic
1. Machine is driven by a belt,low noise.
2. Drawing capstan has two types raw material, they are ceramic plasma and Zirconium oxide. Customer can choose according to request.
4. Automatic Wire Drawing Machine when run with single wire, can choose with dual spool take-up, which can keep running without stop when bobbin is full. Also loading and unloading bobbins automatically.
Application Field
Wire processing and manufacturing industry, wire and cable industry.
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
