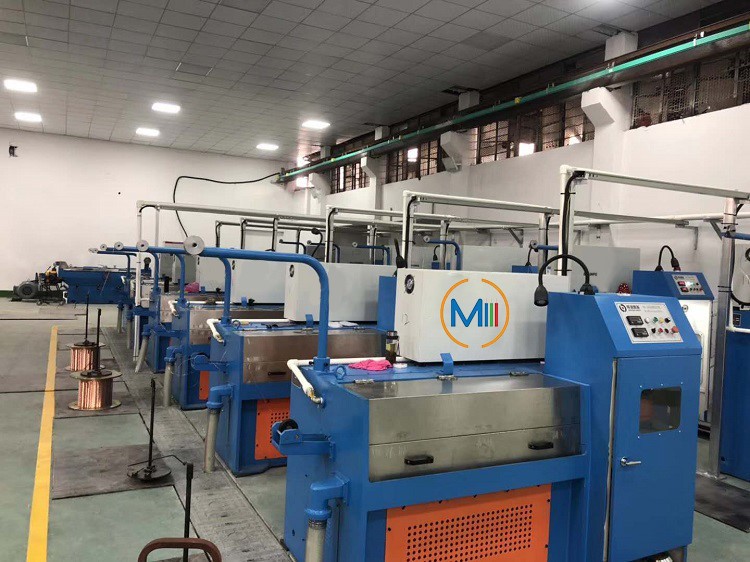

Copper Fine Wire Drawing Machine is used for drawing copper wire from 0.5-1.2mm to 0.08-0.32mm.The machine body is made of HT200, which is formed by one-piece casting. After annealing treatment, the internal stress is removed, and then the machine is finished with a precision milling machine and one-piece reaming.
Main Specifications
|
Machine type |
24DHA |
|
Control system |
Traditional analog type |
|
Inverter control |
Dual Inverter control |
|
Drawing dies No./Max. |
24 |
|
Inlet diameter |
0.50- 1.2mm |
|
Outlet diameter |
0.08- 0.32mm |
|
Drawing line speed |
2500m/min |
|
Slip ratio of m/c |
13% |
|
Fix speed capstan slip ratio |
8% |
|
Frame |
Ironed cast |
|
Capstan |
Ceramic plasma capstan |
|
Main motor |
15KW |
|
Spooler motor |
4KW |
Application Field
Wire processing and manufacturing industry, wire and cable industry.
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
