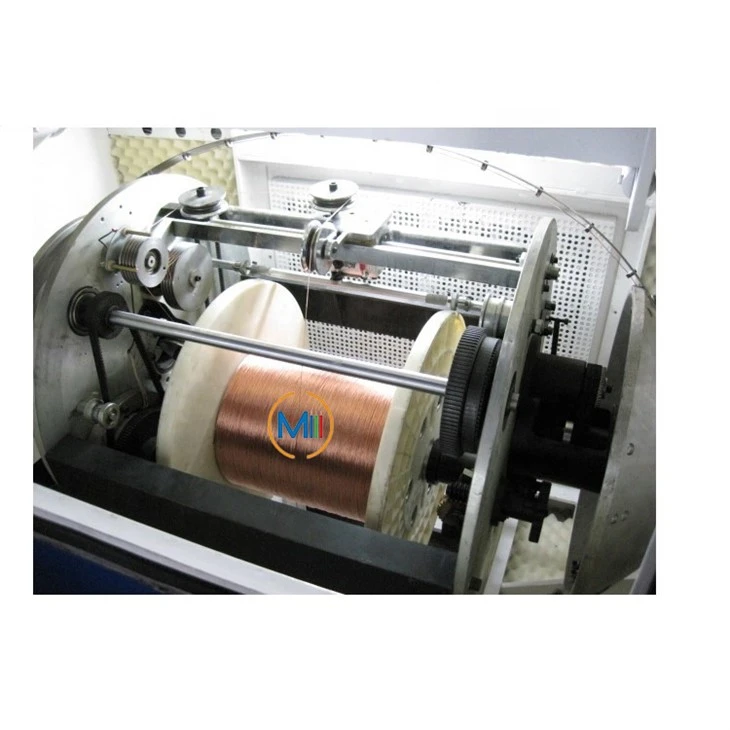

The wire bunching machine is a kind of industrial equipment for bunching that can be widely used in various soft/hard electrical conductor wires so that multiple single electrical conductors can be twisted into one strand to meet the processing requirements of the cable.Wire Bunching Machine is Supply to the twisting of bare copper wires, tin-coated wires and enameled wires with more than 7 strands. Wire Bunching Machine has high rotate speed, main shaft is lubricated by thin oil, cool warning if oil not enough, which can lower the temperature and the noise, extend the life of the machine.
Main Specifications
|
Machine type |
500 |
|
Twist |
Supply to the twisting of bare copper wires, tin-coated wires and enameled wires with more than 7 strands. |
|
Max. speed |
3000r/min |
|
Inlet individual dia. |
0.10-0.45mm |
|
Standard lay length |
6.3-50.4mm |
|
Standing section area |
0.05～2.5mm2 |
|
Twisting direction |
right or left |
|
Spool dimension |
MAX 500mm |
|
Bobbin loading, unloading type |
Manual hydraulic pressure |
|
Tension control |
magnetic powder clutch |
|
Traversing |
Transverse and distance can be adjusted by plain shaft |
|
Main motor |
5.5kw + frequency converter 380v three phase four stage |
|
Brake |
Magnetic brake, the machine will stop automatically if there is any wire breakage |
|
Pay-off stand |
Optional and exclusive |
Machine Characteristic
1. The wire goes from bow belt to idler pulley of main shaft directly, which can reduce scratch and keep round cross section.
2. Magnetic powder clutch auto track and control taking up tension, making the tension of take up steadily.
3. If the wire breaks, the machine can stop automatically.
Notes on use:
To make the finished product look better, the quality better, and the loss caused by human beings is minimized, the following work should be done during the use of the Wire Bunching Machine:
1. Check that the strand conductors are not red or black;
2. Confirm that the number of strands, the direction is correct, the identification is complete, and the wiring is neat;
3. Verify that the packaging is in good condition and that the logo and specifications are consistent with the process requirements;
4. Check that the actual production operation meets the requirements of the process card;
5. Check that the appearance of the stranded wire is round, the compression molding is good, and there are no missing strands, jumpers, missing packages, etc.;
6. Check that the loading capacity of this process meets the requirements of the upper disk, the spool is in good condition, and the wiring is neat.
Application Field
Wire processing and manufacturing industry, wire and cable industry
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
