Efficient Copper Wire Tin Coating Machine is a new high-quality equipment, which is mainly used for tinning on the production of bare copper conductors.
Main Specifications
|
Production speed |
10m/s Max |
|
Inlet Wire Material |
Copper Wire*1 |
|
Inlet wire diameter |
1.2-2.6mm |
|
Copper wire request |
Low oil pollution and non-oxidation |
|
Coating material |
Tin |
|
Coating thickness |
1-20um |
|
Production line type |
4000 Sn-10m/s |
|
Quantity of wire： |
one |
|
Coating weight |
as per DIN 40500, ASTM B 33 |
|
Total installed power |
about 120kW |
|
Power supply voltage |
3*380/50Hz or customized |
|
Control voltage |
24 V DC, 220 V AC |
|
Water consumption (fresh water, continuous) |
About 15 l/h, intermittent |
Machine Characteristic

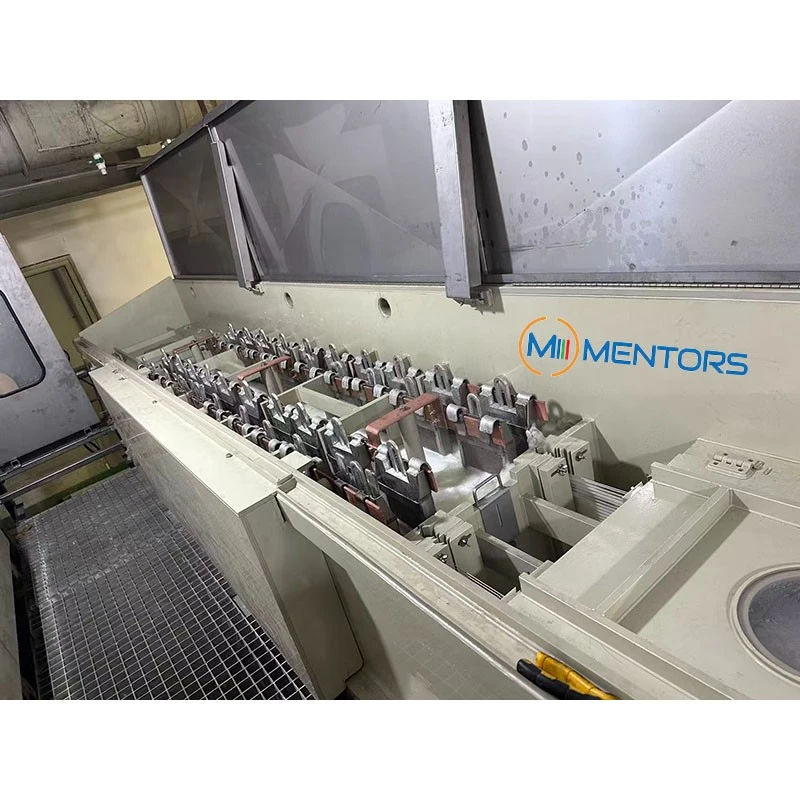

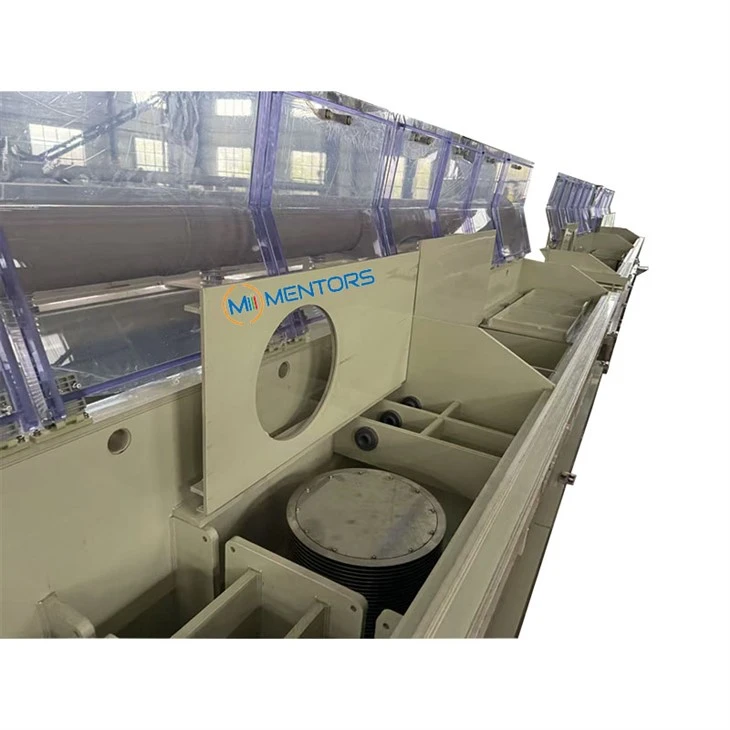

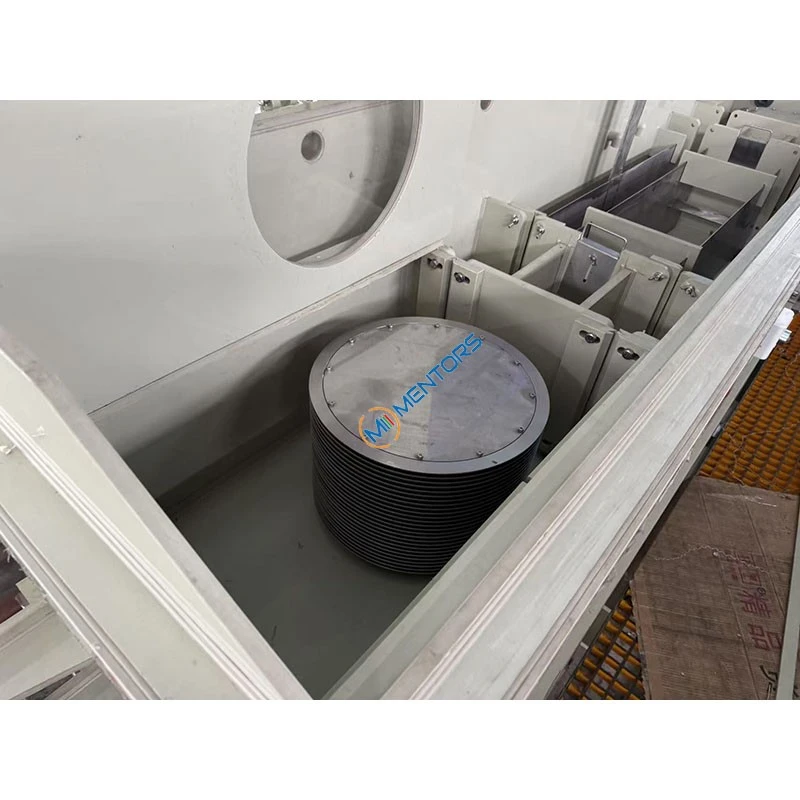

1)Our electrolytic tinning line consists of PVC welded parts, with the collection box and treatment box installed above the ground.
2)It is easy to access the collection box and ensure proper assembly.
3)The entire process includes 5 boxes with covers are made of PVC.
4) Four traction wheels have their own PVC covers.
Application Field
Wire processing and manufacturing industry, wire and cable industry
Machine Guarantee
12 months from the date of loading, except for easy wearing parts and the seller will not guarantee the period due to buyer's misuse of the machine.
